Applications:
• Wine Zone 2400a Ductless Split is most economical split system to purchase and install
• Wine Zone 2400a Ductless Split allows transfer of heat to a room not adjacent to the cellar
• This unit is perfect for both long storage as well as commercial applications where the wine will be turned over quickly
• For rooms already constructed, rooms with concrete or brick walls, and rooms without space for ducting
• For cellars without access to a mechanical room to house an air handler
• Can be used with either an indoor or outdoor remote condensing unit, moving heat and noise away from the cellar

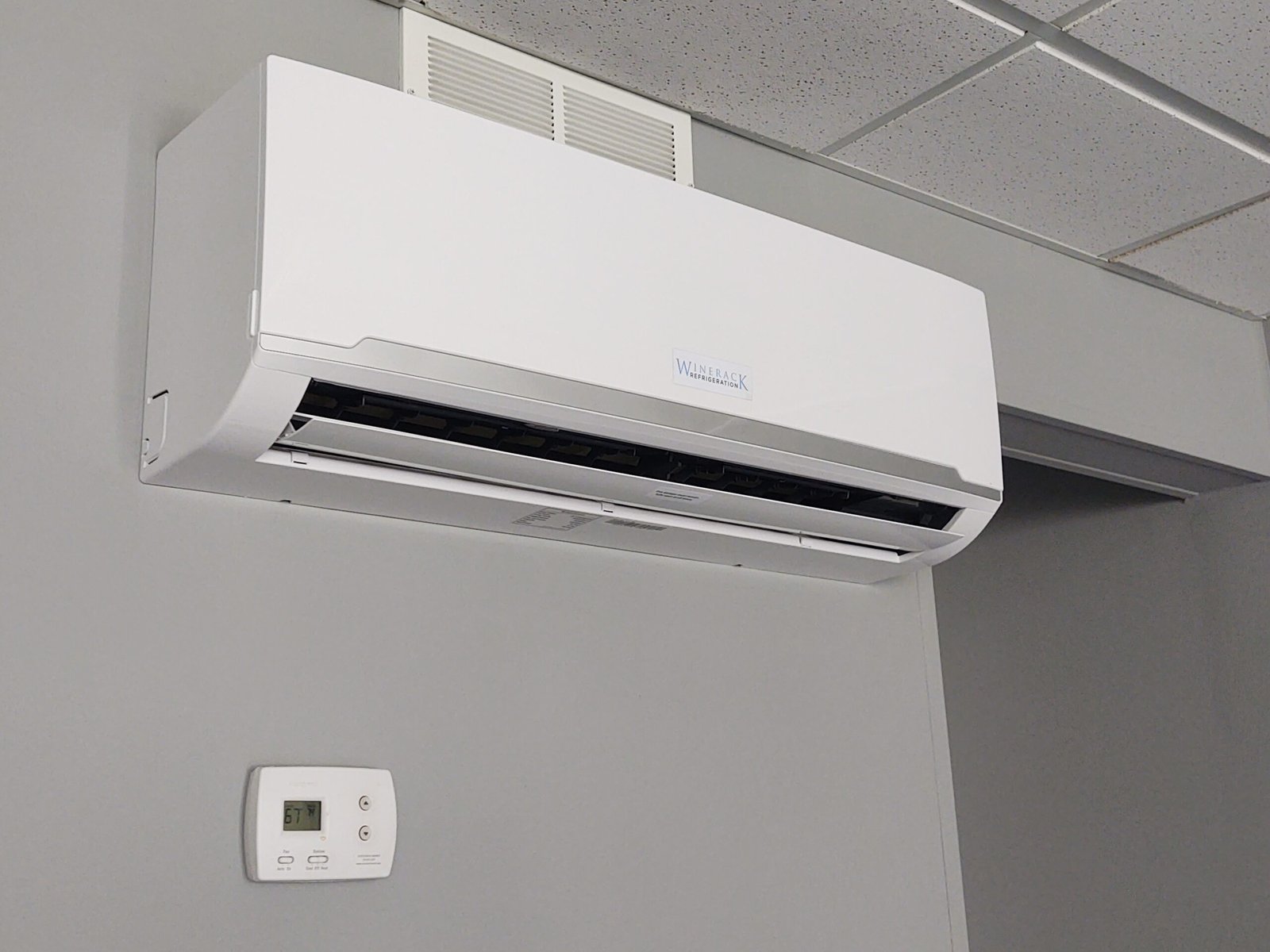

• Extremely quiet, attractive, wall-mounted evaporator
• Attractive, 24V digital thermostat with large display controls the system
• Must be installed and adjusted by a qualified HVAC technician

Ductless Evaporator:
• Low noise evaporator fan and remote condenser design
• Economical way to cool, even where installing ductwork is impractical or impossible
• Requires only one small hole through the wall to run lines for refrigerant, electric, and condensate drain
• Washable filters
• Stylish grille cover is easily detached and cleaned

Indoor condenser:
• UL listed Copeland® commercial condensing unit.
• Uses R-134a refrigerant
• Air-cooled units standard
• Receiver for use with thermostatic expansion valve
• 4″ galvanized iron base
• Variable speed fan control
• Crankcase heater on all models

Outdoor Condenser:
• UL listed Copeland® commercial condensing unit.
• Uses R134a refrigerant
• Air-cooled units standard
• Receiver for use with thermostatic expansion valve
• Rainproof control panel box with liquid-tight conduit on the control panel
• Low ambient controls
• Variable speed fan control
• Crankcase heater on all models

Outdoor Enclosure:
• UL Listed enclosure
• Galvanized steel base
• 20 GA. Galvanized steel cabinet
• Hinged access for easier servicing
• Wind safety latch
• All-season weather protection
• Front louvers at a 45° angle
• Rain trough under hinge to catch moisture that might seep through hinge
• Condenser screen protected with high-temperature baked-on clear lacquer coating

Honeywell® Thermostat:
• Attractive styling complements any décor
• Large display for easy readability
• Keys are located by the display for easy access
• Easy installation, setup, and self-test save the installer time
• Set points permanently held in memory and are retained during power outages

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.19.5″ _module_preset=”default” global_colors_info=”{}”]

WRRDS2400a Ductless Split Specifications

Condenser:
Voltage       Ampacity       Max. Fuse       Min. Wire Size       RLA/LRA       dB
115-60-1           9.5                15                   12-2 w/Gr             6.9/39          50

➢ 1/4” x 3/8” line set up to 70 equivalent feet. See the installation instructions for line set sizing up to 200 equivalent feet maximum.
➢ Unit is not precharged and must be evacuated
➢ For use with R-134a refrigerant.
➢ Indoor condensers must be installed in a room with a minimum of 1240 cubic feet of free space
➢ Dimensions:
Indoor Unit: 25” x 20 1/2” x 14 1/2” 89 lbs.
Outdoor Unit: 27” x 20” x 20” 114 lbs.

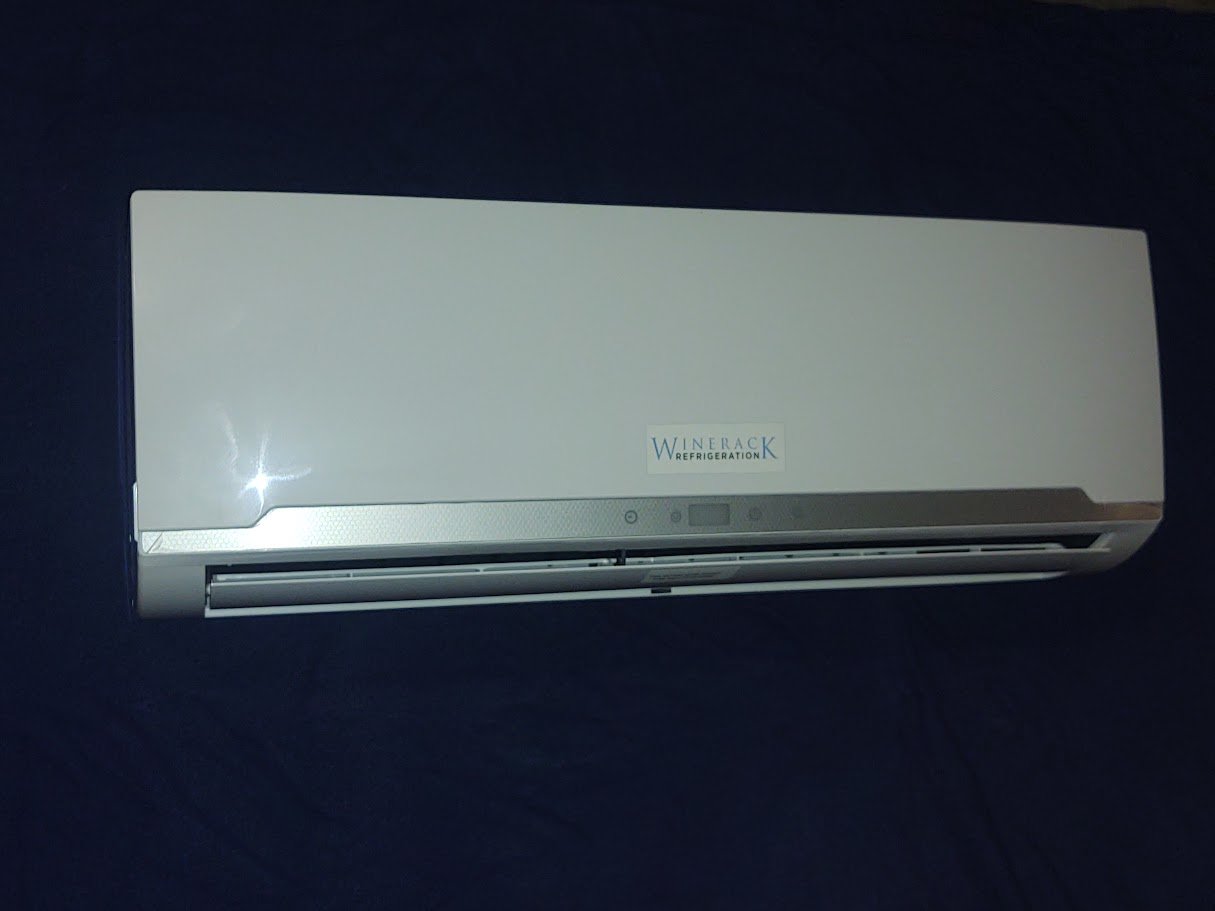

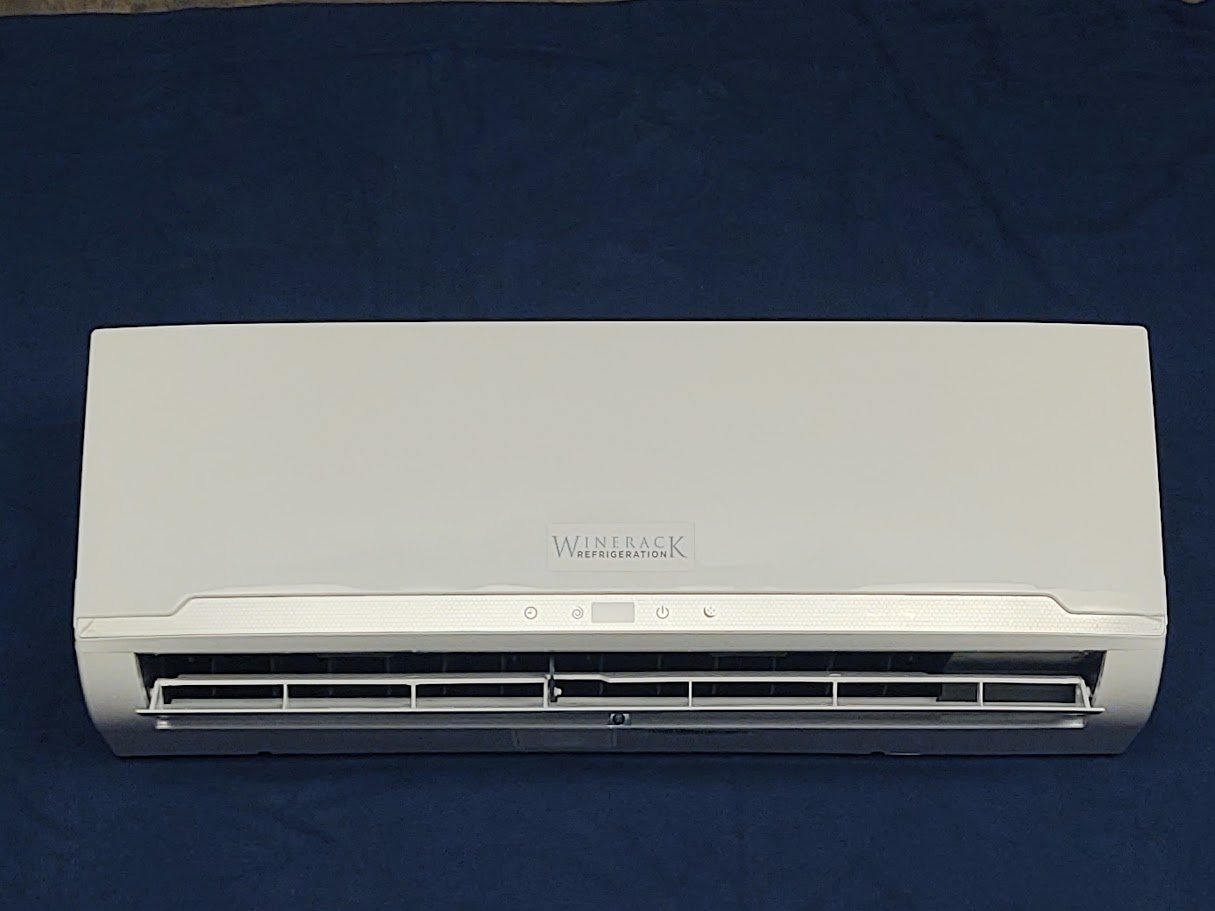

Wall-Mounted Evaporator:
Voltage          Motor Output          Filter          dB
115-60-1          12 Watts           Washable      40

➢ Receives load voltage from condenser
➢ Drain line is 5/8” barbed
➢ Dimensions: 29 3/8” W x 10 5/8” H x 8 1/8” D 17 lbs.

Thermostat:
➢ PRO 1 or Peco 12532 if ordered with humidifier
➢ 18-gauge 5-wire to the condenser

Approximate Shipping Weight: 210-250 lbs

Crate Size: 31” x 37” x 41” T

[/et_pb_tab][et_pb_tab title=”Manuals” _builder_version=”4.19.5″ _module_preset=”default” body_text_color=”#000000″ global_colors_info=”{}”]

• WRRDS2400a Ductless Split Specifications
• WRRDS2400a Ductless Split Installation Instructions
• 2-Year Warranty
