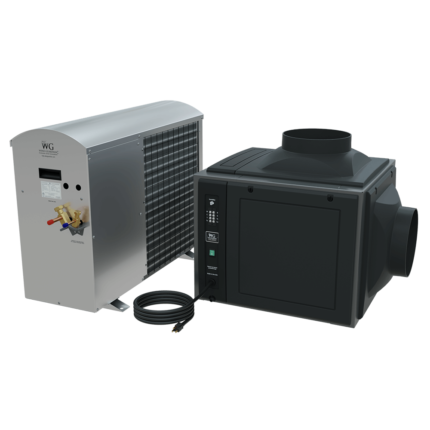

PRO SP50 – 1/2 Ton
Wine Guardian Split System Cooling Unit

[et_pb_section fb_built=”1″ _builder_version=”4.16″ custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_title][et_pb_wc_rating _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_rating][et_pb_wc_price disabled_on=”on|on|on” _builder_version=”4.24.2″ disabled=”on” global_colors_info=”{}”][/et_pb_wc_price][et_pb_wc_description _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_description][et_pb_wc_add_to_cart disabled_on=”on|on|on” _builder_version=”4.24.2″ disabled=”on” global_colors_info=”{}”][/et_pb_wc_add_to_cart][et_pb_button button_url=”tel:833-323-3130″ button_text=”Call Us For Price” _builder_version=”4.24.2″ _module_preset=”default” locked=”off” global_colors_info=”{}”][/et_pb_button][et_pb_wc_meta _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” hover_enabled=”0″ locked=”off” global_colors_info=”{}” sticky_enabled=”0″][et_pb_tab title=”Description” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

Wine Guardian SP50 Pro specialty cooling system unit for small to midsize residential and commercial specialty storage rooms such as wine cellars or art and document preservation is a perfectly-paired condensing unit and evaporator section that comes standard with features.

Such as electric heat, X-treme low ambient protection, and high ambient protection. This wine cooling system has a max capacity of 5,770 BTU/H. Wine Guardian SP50 is compatible with modern smart thermostats and features enhanced refrigeration controls.

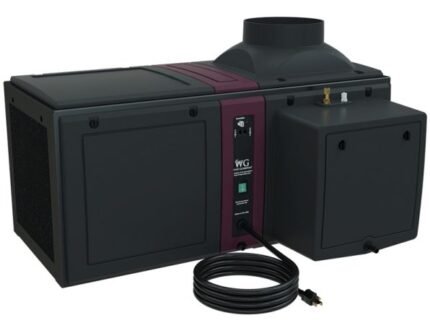

Wine Guardian SP50 ducted units are the most versatile specialty cooling systems on the market. Applications include wine cellars, art or document preservation, instrument or fur storage, computer closets, niche environments, and more; these units can be used in nearly any application.

Wine Guardian SP50 Features

• 5770 BTU/H capacity

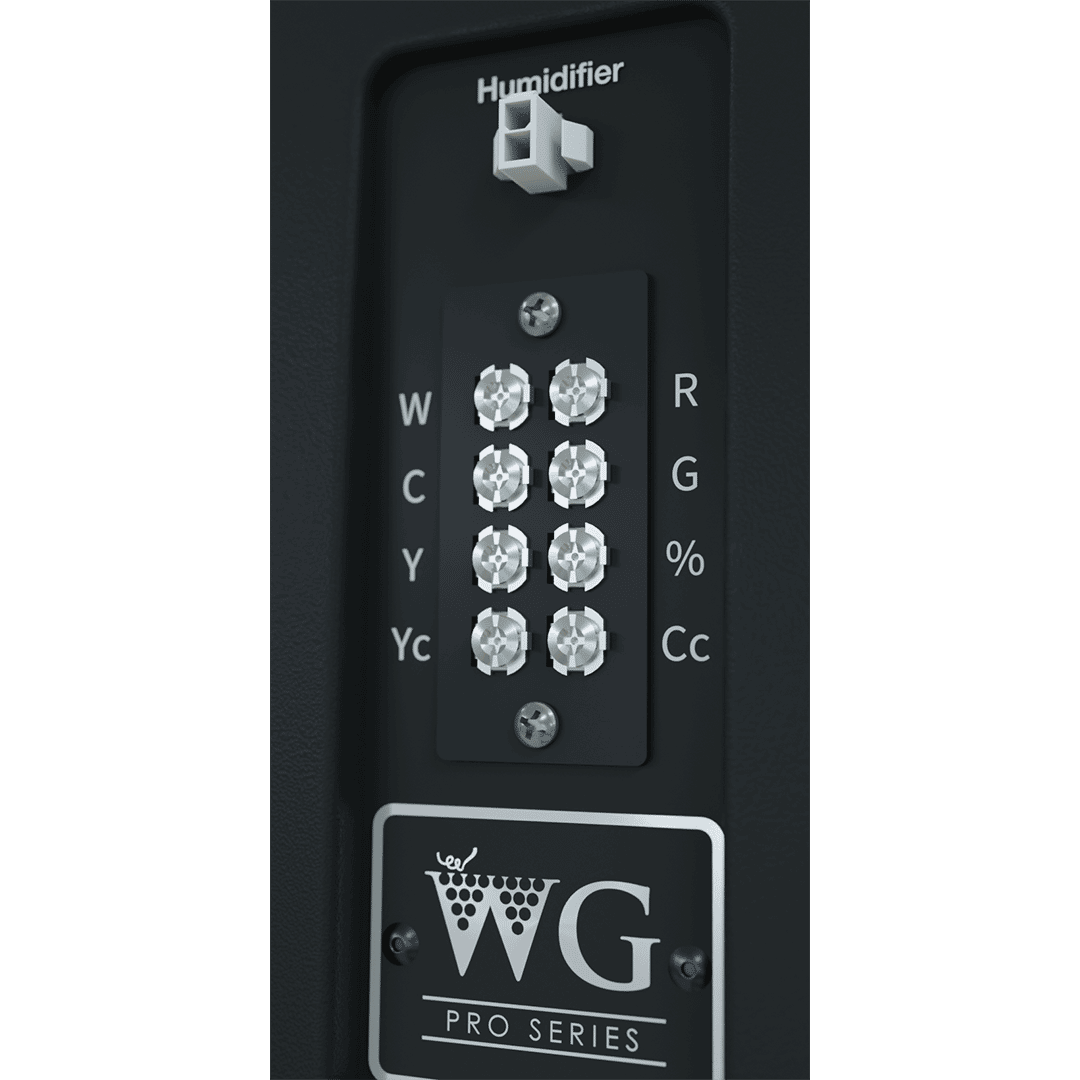

• 24-volt electronics for use with today’s smart thermostats and building management systems
• High- and low-pressure safety switches
• Refrigerant sight glass, filter drier, and access ports

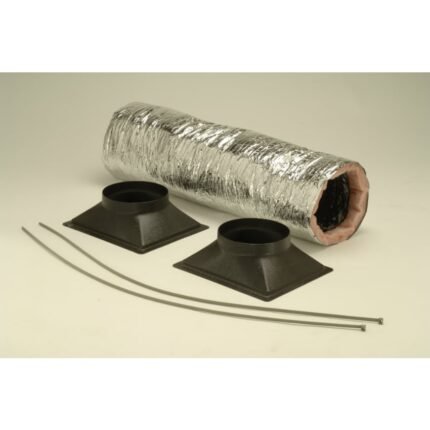

• Duct collar connections
• Low ambient protection
• High ambient protection (on limited models)
• 5-year compressor warranty

Versatility

• Utility piping in one easily accessible location
• Multiple evaporator and condenser outlet locations (Any of three sides)
• Easily mountable in floor, ceiling, or wall applications
• Duct collars on supply & return and intake & exhaust

Quality

• Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
• Standard high static pressure fan for extended lengths of ductwork
• Completely serviceable in the field

Wine Guardian SP50 Options:

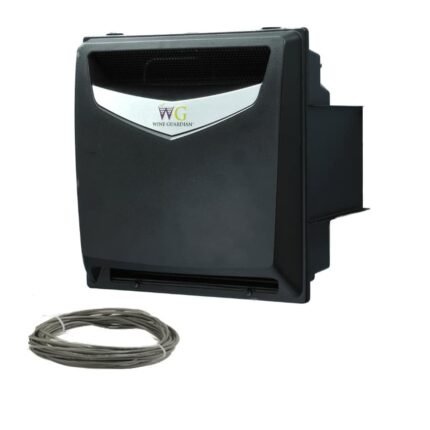

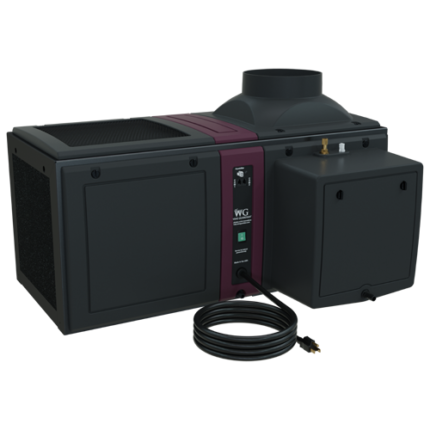

• Bolt-on humidifier
• Electric heat
• Water-cooled or air-cooled

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

Wine Guardian SP50 Dimensions

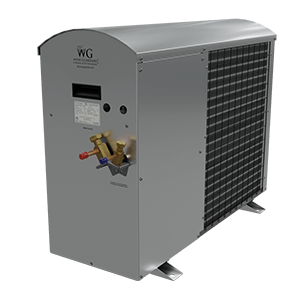

Condenser

• Height: 26 in
• Width: 34 in
• Depth: 12 in body / 16 in base
• Weight: 75 lbs
• Capacity: 5770 BTUH
• Electrical Requirements: 115 Hz

Evaporator

• Height: 14.25 in
• Width: 16.75 in
• Depth: 22 in
• Weight: 35 lbs

[/et_pb_tab][et_pb_tab title=”Manuals / Warranty” _builder_version=”4.24.2″ _module_preset=”default” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″]

Quick Start (PDF)

Spec Sheet (PDF) Cut Sheet (PDF)

Owners Manual (PDF)

Warranty (PDF) Product Brochure (PDF)
