Duct Hood Insulation Upgrade #30736

[et_pb_section fb_built=”1″ _builder_version=”4.16″ custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_title][et_pb_wc_rating _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_rating][et_pb_wc_price _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_price][et_pb_wc_description _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_description][et_pb_wc_add_to_cart _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_add_to_cart][et_pb_wc_meta _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_tabs _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”][et_pb_tab title=”Description” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

Duct Hood Insulation Upgrade #30736. When the entire cooling unit will be placed inside the cellar, the rear (hot side) of the cooling unit must be ducted to and from outside the cellar.

In this scenario, the duct hood and ducting must be insulated to minimize the transfer of heat into the cellar.

This upgrade package provides 5/16″ inches of factory-installed Reflectix insulation to the inside walls of the duct hood, providing R-2 protection for the hood.

R-6 insulated ducting is sold separately.

Compatible with ducts for 1800 and VS self-contained systems. Not compatible with Split, Houdini or Air Handler systems.

[/et_pb_tab][et_pb_tab title=”Features” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

Insulate the rear (hot side) duct when the entire cooling unit is placed inside the cellar. Features include:

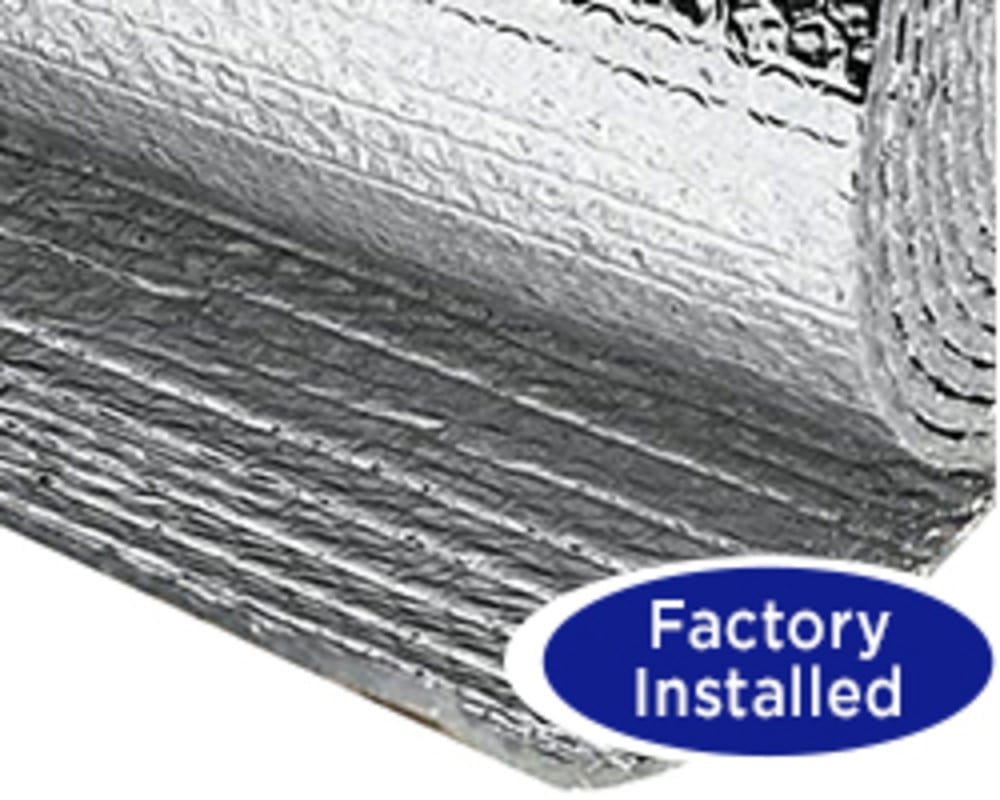

• 5/16″ layer of Reflectix insulation inside the duct hood
• Provides R-2 protection against heat transfer
• Factory installed
