CellarPro 1800 Duct HOOD (Hot Side) with Inline Fan #7409

[et_pb_section fb_built=”1″ _builder_version=”4.16″ custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_title][et_pb_wc_rating _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_rating][et_pb_wc_price _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_price][et_pb_wc_description _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_description][et_pb_wc_add_to_cart _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_add_to_cart][et_pb_wc_meta _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_tabs _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”][et_pb_tab title=”Description” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

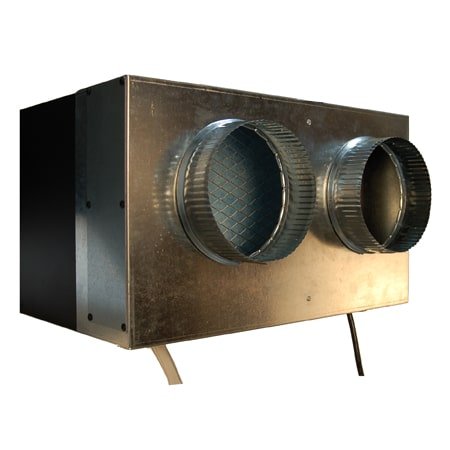

CellarPro 1800 Duct HOOD Rear with Inline Fan Factory Installed (P/N 7409). This kit includes:

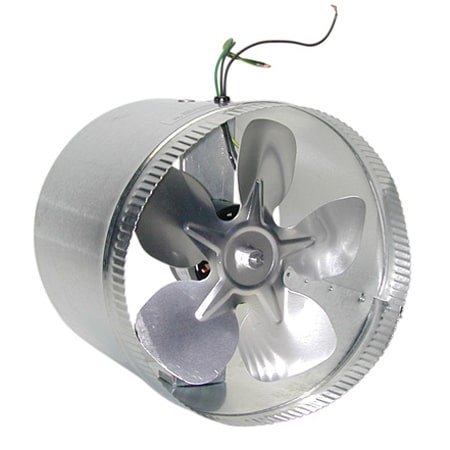

• 6-inch inline fan (120 CFM)
• Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
• 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

Ducting is not included with this kit. If you prefer, we also offer a kit that includes ducting.

[/et_pb_tab][et_pb_tab title=”Configurations” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

IF YOUR CELLARPRO 1800 COOLING UNIT ALREADY HAS SHIPPED WITHOUT WIRING FOR THE AUXILIARY FAN, DO NOT ORDER THIS ITEM. INSTEAD, ORDER OUR RETROFIT DUCT HOOD #7410 OR KIT #1832.

[/et_pb_tab][et_pb_tab title=”Specs & Resources” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

Brand: CellarPro

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 8 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty: 1 Year

The depth of the hood includes 2 1/4 (in) for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 (in). Click on one of the following links for more information:

• Duct Hood Drawings
• Rear Duct Installation Guide
• Rear Drawings – As Ducted

[/et_pb_tab][et_pb_tab title=”Features” _builder_version=”4.17.4″ _module_preset=”default” global_colors_info=”{}”]

Allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch ducting (not included) from start to finish (ducting must not be reduced).

• Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• 50 feet of 6-inch insulated ducting (R-6)
• Designed to fit over the rear of all CellarPro 1800 wine cooling units
• Includes an easy-access panel to replace air filters (sold separately)
• Grommet openings for the drain line and power cord
